PHF SK-1/2, SKF, QD bushing

Imperial, 12.7, 0.5, EAN code: 7316572773819

SKF Authorised distributor logo
Brand SKF
Mfr Part No. PHF SK-1/2
Acorn Code SK-1/2-SKF
HS Code 8483 50 20 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

XXX

$35.35

+

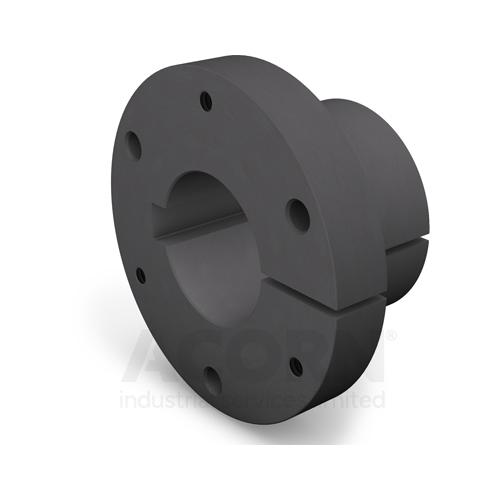

Bushings and hubs are available in many variants, offering specific benefits in power transmission applications ranging from automotive to papermaking. QD (quick disconnect) bushings have a split, heavy duty flanged design with a tapered outside diameter that matches the bore of a pulley, sprocket or coupling. The bushings are easy to install and, after being tightened, they provide a clamping force on the shaft that is equivalent to that of a shrink fit.

• Manufactured according to established market standards
• Easily installed and removed using basic tools
• Superior clamping force
• Well suited for high power drives

Specification

Product Attributes
Manufacturer Product Code PHF SK-1/2
Basic Product Description QD bushing
Measurement Imperial
UOM Each
Bore (mm) 12.7
Bore (inch) 1/2
Flange Dia (mm) 98.6
Flange Thickness (mm) 14.2
Overall Width (mm) 49.02
Bushing Seat Width (mm) 31.75
Weight (Kg) 3.77
EAN 7316572773819
