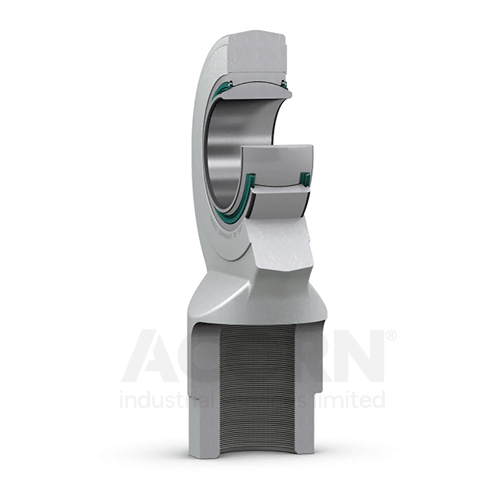

Metric, Rod end, Steel/Steel, Female connection, Left-hand thread, M39 x 3, Requires maintenance, EAN code: 07316571097763
| Brand | SKF |
|---|---|
| Mfr Part No. | SILA 40 ES-2RS |
| Acorn Code | SILA40ES-2RS-SKF |
| HS Code | 8483 30 80 90 |
| COO | Germany (DE) |
Suitable for heavy static or alternating loads, shock loads. With a double-lip seal on both sides of the bearing, can be lubricated via the relubrication facility in the rod end housing and via the pin (shaft).
| Manufacturer Product Code | SILA 40 ES-2RS |
|---|---|
| Basic Product Description | Rod end, requires maintenance, female thread |
| Measurement | Metric |
| UOM | Each |
| Bore diameter, bearing inner ring (mm) | 40 |
| od (mm) | 142 |
| Width (mm) | 94 |
| Thread (mm) | M39 x 3 |
| Weight (Kg) | 2.2 |
| Lubrication | Requires maintenance |
| Features | Female connection |
| Thread (L/R) | Left-hand thread |
| Tilt angle | Tilt angle: 6° |
| Sealing solution | Double lip seals |
| Housing material | Steel |
| Bearing Material | Steel/Steel |
| Basic dynamic load rating | 100 kN |
| Basic static load rating | 166 kN |
| EAN code | 07316571097763 |
