Metric, Bearing, Bearing steel, Metal shield on one side, Filling slot (Extra capacity), Normal Clearance (Cn), EAN code: 07316576680342
| Brand | SKF |
|---|---|
| Mfr Part No. | 308-Z |
| Acorn Code | 308-Z-SKF |
| HS Code | 8482 10 90 30 |
| COO | United States (US) |

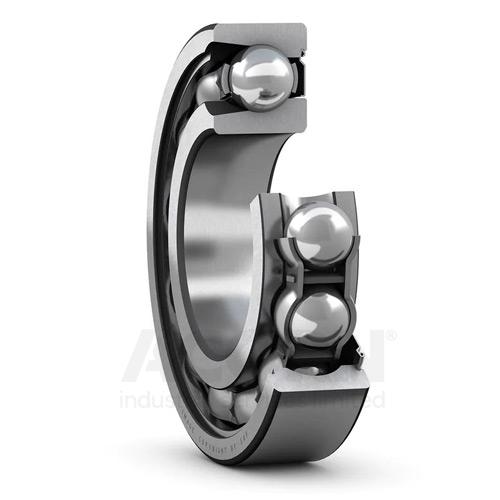

Single row deep groove ball bearings with filling slots and shields on one or both sides, accommodate more balls than standard deep groove ball bearings. They are of a simple, yet versatile, design and are robust in operation, requiring little maintenance. They can accommodate radial and axial loads in both directions. They have a higher radial load carrying capacity than the corresponding bearings without filling slots but have a limited axial load carrying capacity due to the filling slots. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
• Integral sealing prolongs bearing service life
• Simple, versatile and robust design
• Accommodate higher radial loads than corresponding bearings without filling slots, with limited axial loads in both directions
• Require little maintenance
| Manufacturer Product Code | 308-Z |
|---|---|
| Basic Product Description | Single Row Deep Groove Ball Bearing |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 40 |
| od (mm) | 90 |
| Width (mm) | 23 |
| Weight (Kg) | 0.68 |
| Seals | Metal shield on one side |
| Features 3 | Filling slot (Extra capacity) |
| Clearance | Normal Clearance (Cn) |
| Cage design | Stamped steel |
| Cage material | Steel cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 45.7 |
| Basic static load rating | 36 |
| EAN-Code | 07316576680342 |
Metric, Bearing, Bearing steel, Metal shield on one side, Filling slot (Extra capacity), Normal Clearance (Cn), EAN code: 00029176032424
This item is not currently available from our stocks.
Despatch date information is on request.
