Metric, Bearing, High temperature steel, Open (No seal), Solid lubricant, Multiples of C5, EAN code: 07316577087584
| Brand | SKF |
|---|---|
| Mfr Part No. | 6206/VA201 |
| Acorn Code | 6206/VA201-SKF |
| HS Code | 8482 10 90 30 |
| COO | Sweden (SE) |

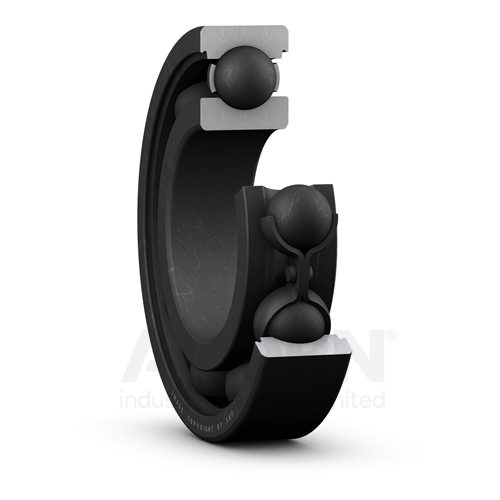

Deep groove ball bearing for high temperature applications
Single row deep groove ball bearings for high temperature applications are designed for challenging operating conditions, with certain variants being capable of performing at temperatures as high as 350 °C (660 °F). They have increased radial internal clearances and use graphite-based lubricants that are optimized for operation at high temperatures. The entire surface of the bearings are manganese phosphate treated, which enhances adhesion of the lubricant to the metal and improves their running-in properties. As with deep groove ball bearings generally, they are particularly versatile, accommodate radial and axial loads in both directions, and are easy to mount.
• Optimized for operation at high temperatures - up to 350 °C (660 °F)
• Easily swapped with grease-lubricated bearings of corresponding ISO dimensions
• Increased reliability, reduced complexity and decreased environmental impact
• Typical benefits of single row deep groove ball bearings
| Manufacturer Product Code | 6206/VA201 |
|---|---|
| Basic Product Description | Single Row Deep Groove Ball Bearing, for high temperature applications |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 62 |
| Width (mm) | 16 |
| Weight (Kg) | 0.193 |
| Lubrication | Solid lubricant |
| Seals | Open (No seal) |
| Clearance | Multiples of C5 |
| Other Variations | VA - Application oriented variants |
| Cage material | High temperature steel cage |
| Bearing Material | High temperature steel |
| Basic dynamic load rating | 20.3 |
| Basic static load rating | 11.2 |
| EAN-Code | 07316577087584 |
