BS, Steel - Hardened Tooth, Pilot Bore Sprocket, EAN code: 07316572861189

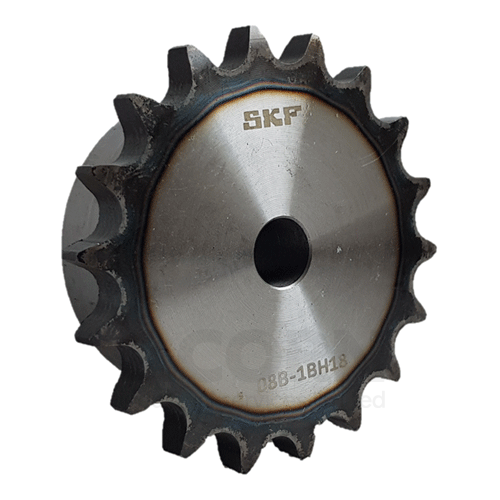

Simplex sprocket with single hub and rough stock bore, European standards (EN)
These simplex sprockets have a rough stock bore and hub profile on one side of the sprocket to connect to the shaft.
As standard, all sprockets are made from high-quality steels and have a black oxide coating, and sizes up to and including 25 tooth have hardened teeth.
• Manufactured according to international global standards
• Made from high-grade steel and carbon steel
| Manufacturer Product Code | PHS 06B-1BH20 |
|---|---|
| Basic Product Description | Pilot Bore Sprocket |
| Standard BS/ANSI | BS |
| UOM | Each |
| Tooth Pitch (ANSI) Inch | 3/8 |
| No. Teeth (mm) | 20 |
| Pitch Diameter (mm) | 60.89 |
| Bore max (mm) | 28 |
| Bore min (mm) | 10 |
| Hub Size (mm) | 46 |
| Hub diameter (mm) | 46 |
| Width (mm) | 28 |
| Weight (Kg) | 0.363 |
| Bore Type | Pilot Bore |
| No. Teeth Rows | Simplex - 1 Row |
| Material | Steel - Hardened Tooth |
| EAN | 07316572861189 |
