Metric, Bearing unit, Bearing steel, Double-lip nitrile rubber seals, Spherical roller bearing, Concentric set screw lock, Expansion type: Fixed

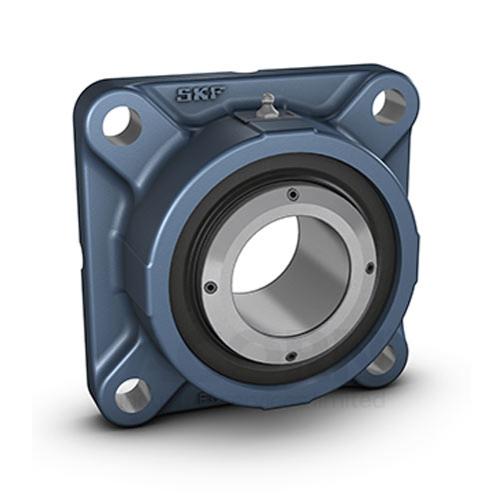

Square flanged roller bearing units consist of a spherical roller bearing mounted in a cast iron housing that can be bolted to a machine wall. They are robust, ready-to-mount units that are assembled, lubricated and sealed at the factory for maximum service life. The simple installation, easy alignment and reliable locking technology of SKF ConCentra units contribute to a smooth operation.
• Ready to mount
• Factory lubricated and sealed
• Long service life
• Minimal maintenance
| Manufacturer Product Code | FYNT70F |
|---|---|
| Basic Product Description | Y-Bearing Square 4-bolt flanged unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 70 |
| Weight (Kg) | 11 |
| Seals | Radial lip seal |
| Ex-2 Features 1 | Spherical roller bearing |
| Features | SKF ConCentra |
| Ex-4 Bore Type | Cylindrical |
| Contact Angle | Expansion type: Fixed |
| Ma-2 Bearing Material | Bearing steel |
| Housing Material | Cast iron |
| Housing Type | FYNT Series |
| Bearing/Insert | Spherical roller bearing |
| Housing | Square flange |
| Te-2 Dynamic load | 208 kN |
| Te-3 Static load | 228 kN |
| Te-4 Max Speed | 2600 r/min |
