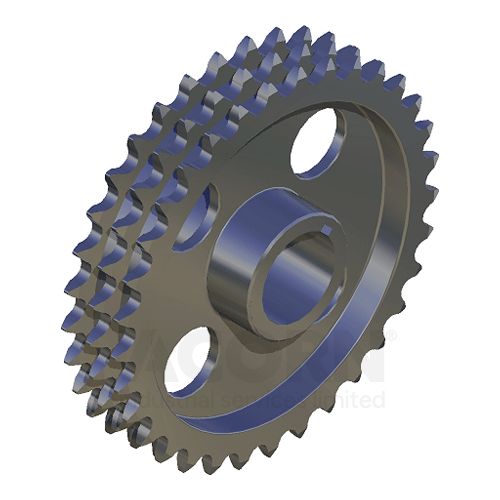

PHS 16B-3C57, SKF, Pilot Bore Sprocket

BS, Steel, Pilot Bore Sprocket, EAN code: 07316572798850

SKF Authorised distributor logo
Brand SKF
Mfr Part No. PHS 16B-3C57
Acorn Code 16B-3C57-SKF
HS Code 8483 90 20 90
COO China (CN)

$1,147.59

+

Pilot bore chain sprockets offer the flexibility of custom boring to suit a specific application or shaft size.
Used for the transmission of power between drive shafts through roller chains. Manufactured in steel or cast iron in a range of tooth pitches, designed for use with respective pitches of roller chain.


Specification

Product Attributes
Manufacturer Product Code PHS 16B-3C57
Basic Product Description Pilot Bore Sprocket
Standard BS/ANSI BS
UOM Each
Tooth Pitch (ANSI) Inch 1
Tooth Pitch mm 25.4
Pitch Diameter (mm) 461.07
Bore max (mm) 107
Bore min (mm) 30
Hub diameter (mm) 180
Width (mm) 110
Weight (Kg) 54.8
Bore Type Pilot Bore
No. Teeth Rows Triplex - 3 Row
Material Steel
EAN 07316572798850
