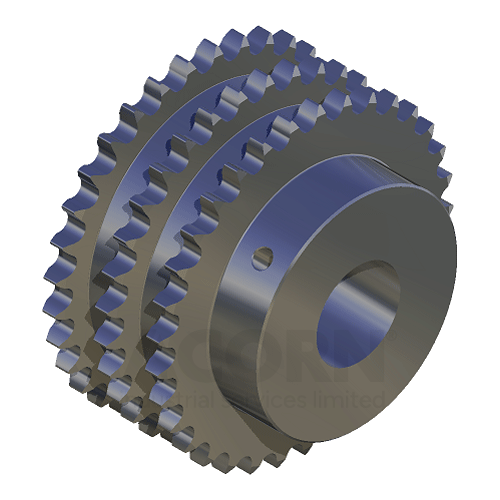

PHS 60-3B30, SKF, Pilot Bore Sprocket

ANSI, Steel, Pilot Bore Sprocket, EAN code: 07316572641163

SKF Authorised distributor logo
Brand SKF
Mfr Part No. PHS 60-3B30
Acorn Code 60-3B30-SKF
HS Code 8483 90 20 90
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

 China (CN)

Request a price

− +

Specification

Product Attributes
Manufacturer Product Code PHS 60-3B30
Basic Product Description Pilot Bore Sprocket
Standard BS/ANSI ANSI
UOM Each
Tooth Pitch (ANSI) Inch 3/4
Tooth Pitch mm 19.05
External Diameter (mm) 192.79
Bore max (mm) 69.85
Bore min (mm) 25.4
Hub diameter (mm) 107.95
Overall width, hub (mm) 76.2
Weight (Kg) 10.362
Bore Type Pilot Bore
No. Teeth Rows Triplex - 3 Row
Material Steel
EAN 07316572641163
