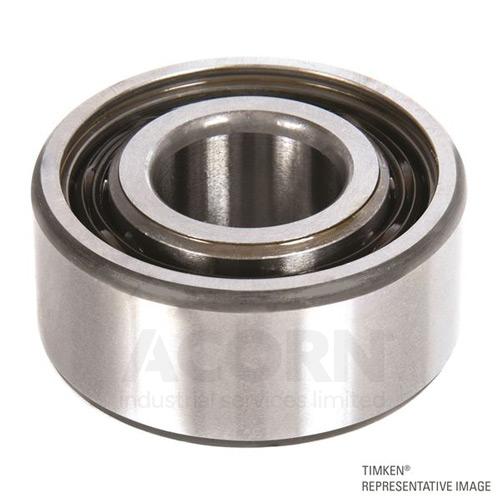

3206 ATN9/C3, SKF, Double row angular contact ball bearing
Open (No seal), 30° Contact angle, C3 Clearance, EAN code: 7316577039743
$33.97
In stock
Open (No seal), 30° Contact angle, C3 Clearance, EAN code: 0013992228291
| Brand | Timken |
|---|---|
| Mfr Part No. | 3206 ATN1/C3 |
| Acorn Code | 3206ATN1/C3-TIMKEN |
| HS Code | 8482 10 90 30 |
| COO | China (CN) |
Designed to handle high-speeds with both radial and axial loads, and reliable performance in pump, compressor, electric motor and many other industrial applications.
Double-row requires less axial space than two single-row bearings, and can take radial loads and axial loads in both directions.The back-to-back arrangement provides a high moment/tilting load-handling capability.
● Enhanced raceway finish
● Quiet operation
● Dimensionally interchangeable
● P0 class
● 30˚ contact angle
| Manufacturer Product Code | 3206 ATN1/C3 |
|---|---|
| Basic Product Description | Double Row Angular Contact Ball Bearing |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 62 |
| Width (mm) | 23.8 |
| Weight (Kg) | 0.302 |
| Seals/Shields | Open (No seal) |
| Clearance | C3 Clearance |
| Cage design | Reinforced moulded polymer |
| Contact Angle | 30° Contact angle |
| Cage material | Polymer cage |
| Bearing Material | Steel |
| EAN-Code | 0013992228291 |
Open (No seal), 30° Contact angle, C3 Clearance, EAN code: 7316577039743
Open (No seal), 40° Contact angle, C3 Clearance, EAN code: 00029176421778
Open (No seal), 30° Contact angle, Grease (L285/customer specific), C3 Clearance, EAN code: 4012802632477
This item is not currently available from our stocks.
Despatch date information is on request.
Open (No seal), 30° Contact angle, C3 Clearance, EAN code: 4012802474602
This item is not currently available from our stocks.
Despatch date information is on request.
Open (No seal), 40° Contact angle, C3 Clearance, EAN code: 9008745703959
