LBBR 40, Ewellix, Linear ball bearing

EWELLIX Code : M/2201198, Compact ISO 1, LGEP2

Brand Ewellix
Mfr Part No. LBBR 40
Acorn Code LBBR40-EWX
HS Code 8482 99 00 90
COO Germany (DE)

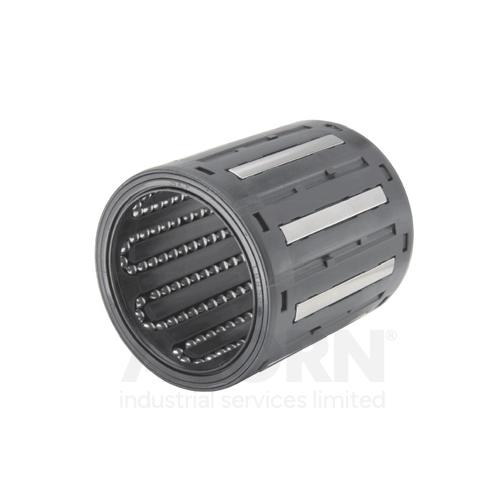

The linear ball bearing (also called ball bushing or shaft guiding) consists of a polymeric cage with raceway segments made of hardened steel to guide the ball sets within the complete system. Recirculating balls provide unlimited stroke at low friction movement. Ewellix linear ball bearings are also available in a range of units that feature lightweight, cast aluminum housings. Combined with Ewellix shafts and accessories, this complete offer can be used to develop simple, cost-effective linear guiding systems for a wide variety of applications.Lubrication for linear ball bearings Ewellix linear ball bearings and units for shaft diameter 6 mm and larger are factory pre-lubricated. Due to the applied amount of grease and the use of Ewellix double-lip seals (2LS), many applications will not require relubrication because in these cases the theoretical relubrication interval exceeds the bearing life. These linear bearings are lubricated with the high-performance Ewellix grease LGEP2.


Product Attributes
Manufacturer Product Code LBBR 40
Basic Product Description Linear ball bearing
UOM Each
id (mm) 40
od (mm) 52
Width (mm) 60
Weight (Kg) 0.13
Lubrication LGEP2
ISO Conformaty Compact ISO 1
Variance Closed type linear ball bearing
Cage Material Plastic (Polymer)
Series LBBR
