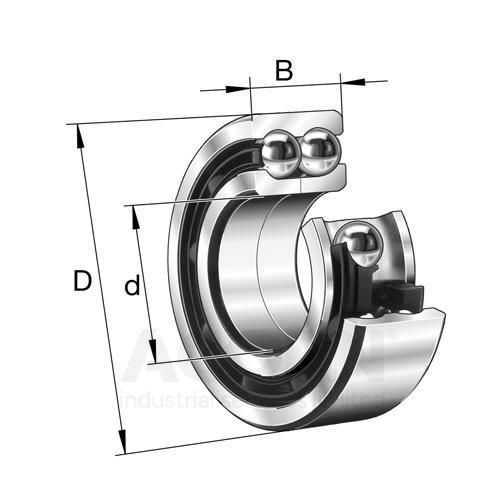

3307-DA, FAG, Double Row Angular Contact Ball Bearing

Open (No seal), Split inner ring, 45° Contact angle, Normal Clearance (Cn), EAN code: 4012801010399

ACORN is an FAG Authorised Distributor
Brand FAG
Mfr Part No. 3307-DA
Acorn Code 3307-DA-FAG
HS Code 8482 10 90 30
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

 Germany (DE)

$106.12

− +

Specification

Product Attributes
Manufacturer Product Code 3307-DA
Basic Product Description Double Row Angular Contact Ball Bearing
Measurement Metric
UOM Each
id (mm) 35
od (mm) 80
Width (mm) 34.9
Weight (Kg) 0.837
Seals/Shields Open (No seal)
Features 1 Split inner ring
Clearance Normal Clearance (Cn)
Cage design Steel sheet metal
Contact Angle 45° Contact angle
Accuracy Normal (PN)
Cage material Steel cage
Dynamic Load Rating C (N) 50000
Static Load Rating Co (N) 41000
EAN-Code 4012801010399
