RCJT 25, Timken, Oval 2 Bolt Flanged Unit
Metric, Bearing unit, Bearing steel, EAN code: 0087796108554
$85.82
| Brand | Timken |
|---|---|
| Mfr Part No. | RCJT 25 |
Metric, Bearing unit, Bearing steel, Eccentric locking collar
| Brand | FSB |
|---|---|
| Mfr Part No. | HCFL205 |
| Acorn Code | HCFL205-FSB |
| HS Code | 8483 20 00 00 |
| COO | China (CN) |

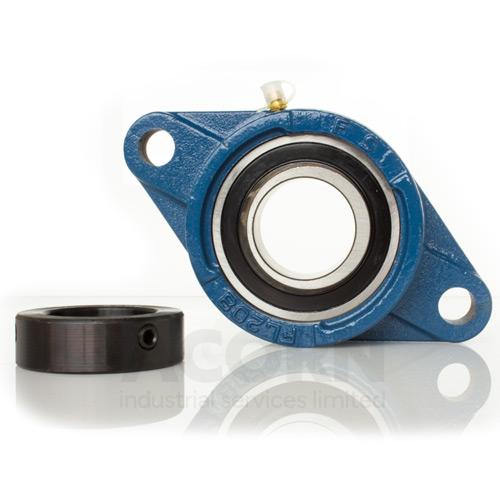

These bearing housings have oval flanges which can be easily installed onto a machine with two bolts. This type of bearing unit is suitable where mounting space is limited or where it is necessary to minimize the distance between shafts. The distance between bolt holes of an oval flange type is generally equal to the distance between bolt holes diagonal position of square flange type.
| Manufacturer Product Code | HCFL205 |
|---|---|
| Basic Product Description | Oval 2 Bolt Flanged Unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 25 |
| Width (mm) | 96 |
| Length (mm) | 130 |
| Weight (Kg) | 0.492 |
| Features | Eccentric locking collar |
| In-1 Bolt Hole Centres (mm) | 76 |
| Bearing/Insert Material | Bearing steel |
| Housing Material | Cast iron |
| Bearing/Insert Reference | HC205 |
| Housing Reference | FL205 |
| Dynamic load (kN) | 1400 |
| Static load (kN) | 7880 |
| Max Speed | 6250 |
Metric, Bearing unit, Bearing steel, EAN code: 0087796108554
| Brand | Timken |
|---|---|
| Mfr Part No. | RCJT 25 |
Metric, Bearing unit, R Seals, Grub screw locking, EAN code: 4012802836899
| Brand | INA |
|---|---|
| Mfr Part No. | RCJT25-XL-N |
Metric, Bearing unit, Bearing steel, Standard seals, Eccentric locking collar, Standard grease
| Brand | RHP |
|---|---|
| Mfr Part No. | SFT 25DEC |
Metric, Bearing unit, Bearing steel, Seal and flinger on both sides, Eccentric locking collar, EAN code: 07316570736854
| Brand | SKF |
|---|---|
| Mfr Part No. | FYTB 25WF |
