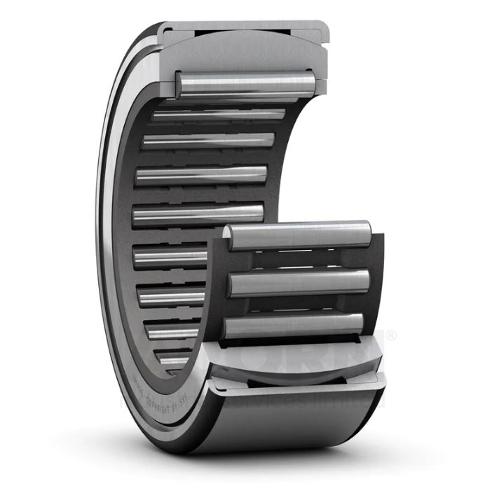

RPNA30/47-XL, INA, Alignment needle roller bearing, without an inner ring
Metric, Bearing, Bearing steel, Inner ring not included, EAN code: 4012802688894
$43.86
| Brand | INA |
|---|---|
| Mfr Part No. | RPNA30/47-XL |
Metric, Bearing, Bearing steel, Inner ring not included, EAN code: 07316570725575
| Brand | SKF |
|---|---|
| Mfr Part No. | RPNA 30/47 |
| Acorn Code | RPNA30/47-SKF |
| HS Code | 8482 40 00 00 |
| COO | Slovakia (SK) |
Alignment needle roller bearings are self-aligning and offer a compact solution in applications where less space is available. Owing to their large number of rollers, they have a high load carrying capacity. Their internal design, where a convex outer ring meets two concave seating rings encased in a drawn sleeve, enables the bearings to accommodate initial static misalignment. Bearings without an inner ring are an excellent choice for compact bearing arrangements, if the shaft can be hardened and ground.
• High radial load carrying capacity
• Accommodate static initial misalignment
• Low cross-sectional height
• Suitable for compact bearing arrangements
| Manufacturer Product Code | RPNA 30/47 |
|---|---|
| Basic Product Description | Alignment needle roller bearing, without an inner ring |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 47 |
| Width (mm) | 20 |
| Weight (Kg) | 0.13 |
| Sealing | Without |
| Accuracy | Normal |
| Bearing Material | Bearing steel |
| Housing Type | Inner ring not included |
| Basic dynamic load rating | 22.9 kN |
| Basic static load rating | 38 kN |
| Limiting speed | 15000 r/min |
| Reference speed | 13000 r/min |
| EAN code | 07316570725575 |
Metric, Bearing, Bearing steel, Inner ring not included, EAN code: 4012802688894
| Brand | INA |
|---|---|
| Mfr Part No. | RPNA30/47-XL |
