Portable, bearing heater, 10 A, EAN code: 07316579454117
| Brand | SKF |
|---|---|
| Mfr Part No. | TWIM 15K/110V |
| Acorn Code | TWIM15K/110V-SKF |
| HS Code | 8514 40 00 00 |
| COO | Netherlands (NL) |

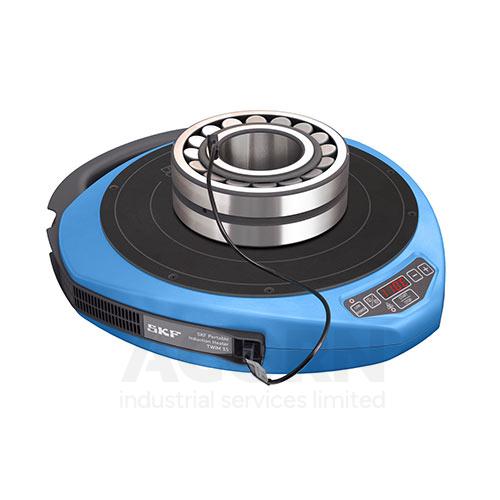

The SKF TWIM 15 is a portable and robust bearing heater that is designed for safe bearing heating for hot mounting. This compact heater is especially suitable for usage in the field, yet it is compact and versatile for usage on workbenches. The heater utilizes a smart construction and operating software to optimise the bearing heating safety and speed for bearings weighing up to 20 kg. The heater has different power modes to support heating of sensitive bearings (e.g. with reduced clearance) and non-bearing components.
• Portable, lightweight, compact and robust
• Sturdy carrying bag with shoulder straps and pockets for accessories included
• Smart and innovative bearing heating technology
• No support yokes required
• Autmatic temperature control
• Detection of bearing size and automatic heating adjustment
| Manufacturer Product Code | TWIM 15K/110V |
|---|---|
| Basic Product Description | bearing heater TWIM 15K (110V version) kit with carrying bag |
| UOM | KIT |
| Width (mm) | 450 |
| Length (mm) | 500 |
| Height (mm) | 100 |
| Total weight (incl. yokes) | 9 |
| Heater Type | Portable |
| Temperature Range | 20-200°C (68-392°F) |
| Maximum Power Consumption | 10 A |
| Demagnetisation | The heater does not magnetise |
| Voltage and frequency | 110V, 60Hz |
| Voltage Classification | V |
| Max. Bearing Weight (Kg) | 20 Kg |
| Bore Diameter Range (mm) | 20 |
| Outer Diameter Range (mm) | 320mm |
| Max. Bearing Width (mm) | 85mm (3.35in) |
| EAN code | 07316579454117 |
