TMBS 50E, SKF, Strong Back Bearing Puller Set

Strong Back Pullers, EAN code: 7316572298459

Brand SKF
Mfr Part No. TMBS 50E
Acorn Code TMBS50E-SKF
HS Code 8482 99 00 90
COO Taiwan, Province Of China (TW)



The SKF TMBS 50E strong back puller facilitates dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or when the application requires a long reach. The puller is operated mechanically and especially suitable for small shaft diameters. A special separator design is used that can be easily inserted between the bearing and the shoulder on the shaft.

• Easily separator placement between bearing and shoulder on the shaft
• Spring-loaded centre point of spindle allows easy puller centring and minimises the risk of shaft damage
• Dismounting force is generated by mechanical spindle
• Firm grip behind the bearing's inner ring reduces the force required to dismount the bearing


Product Attributes
Manufacturer Product Code TMBS 50E
Basic Product Description Strong Back Bearing Puller Set
Shaft diameter 7-50mm
Maximum bearing outer diameter 85mm
Weight (Kg) 1.8

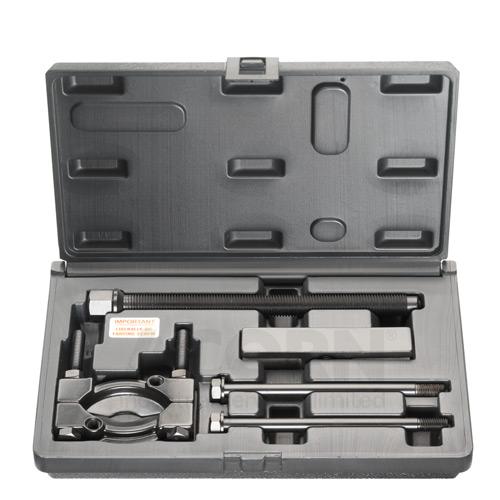

Kit Contents Contents
1 x separator set
1 x mechanical spindle
1 x beam
2 x main rods
Effective arm length/Reach 110mm
Maximum withdrawal force (kN) 30 kN
Puller Type or Accessories Strong Back Pullers
Series TMBS
EAN code 7316572298459
