TMHC 110E, SKF, Hydraulic bearing puller set

Hydraulic Pullers, EAN code: 7316572298442

Brand SKF
Mfr Part No. TMHC 110E
Acorn Code TMHC110E-SKF
HS Code 8482 99 00 90
COO Taiwan, Province Of China (TW)


in stock

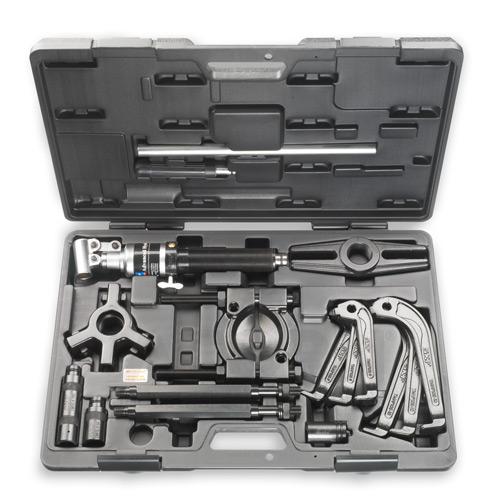

The TMHC 110E is a hydraulic puller kit that comnbines a jaw puller and a strong back puller. The kit includes two arm sets with different lengths that can be used in 2-arm or 3-arm configuration and a back puller with a maximum reach of 250 mm (9.8 in.). The hydraulic spindle with safety valve enables safe and effortless dismounting for various bearings and components. The spring-loaded centre piece and self-locking puller arms further support safe and easy puller operation.

• Versatile kit with two different arm lengths usable in 2-arm or 3-arm configuration and strong back puller
• Effortless dismounting with hydraulic spindle
• Self-locking arms minimise risks of slippage under load
• Spring-loaded centre point allows easy puller centring
• Supplied with two hydraulic spindle extension pieces to allow quick adaptation to required pulling length
• Hydraulic spindle is equipped with safety valve to prevent puller overload


Product Attributes
Manufacturer Product Code TMHC 110E
Basic Product Description Hydraulic bearing puller set
Shaft diameter 20-100mm
Weight (Kg) 13.5
Kit Contents 1 x arm-assembly stand
3 x arms, set 1 (TMHP10E-9)
3 x arms, set 2 (TMHP10E-10)
1 x separator set
1 x beam
2 x main rods
2 x extension rods, 125 mm (4.9 in)
1 x hydraulic spindle TMHS 100
2 x extension pieces for hydraulic spindle; 50, 100 mm (2.0, 3.9 in)
1 x nosepiece with centre point for hydraulic spindle
Effective arm length/Reach 115mm (Jaw puller effective arm length);
250mm (Strong back puller reach)
Maximum withdrawal force (kN) 100 kN
Puller Type or Accessories Hydraulic Pullers
Series TMHC
EAN code 7316572298442
