TMMA 100H/SET, SKF, SKF EasyPull hydraulic puller set

Hydraulic Pullers, EAN code: 7316572459508

SKF
Brand SKF
Mfr Part No. TMMA 100H/SET
Acorn Code TMMA100H/SET-SKF
HS Code 8482 99 00 90
COO Hungary (HU)

$1,611.15

+

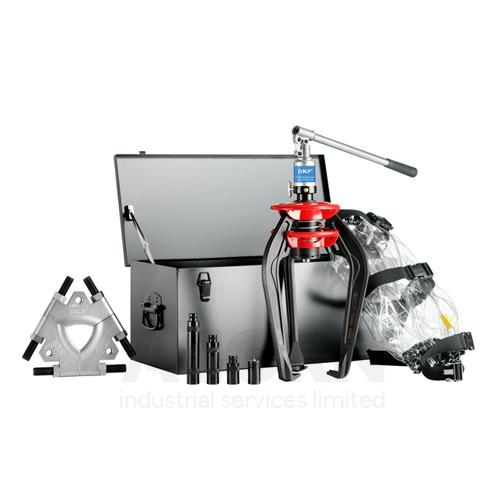

The SKF EasyPull TMMA 100H/SET is a complete set for safe and effortless bearing dismounting. The set includes a hydraulically assisted puller, a tri-section pulling plate to transmit the pulling force to the bearing inner ring and a protection blanket to increase dismounting safety. The dismounting set is delivered in a sturdy storage case.

• Complete set of hydraulically assisted SKF EasyPull, tri-section pulling plate and protection blanket
• Makes bearing dismounting safer, easier and faster
• Especially suitable for dismounting spherical roller and CARB toroidal roller bearings, and other components such as pulleys and flywheels
• Supplied in a sturdy storage case

Specification

Product Attributes
Manufacturer Product Code TMMA 100H/SET
Basic Product Description SKF EasyPull hydraulic puller set
UOM Set
Weight (Kg) 31.6
Claw Height 13.8 mm
Hydraulic spindle / pump TMHS 100
Case dimensions 680 x 320 x 270 mm
Tri-section pulling plate TMMS 160
Puller protection blanket TMMX 350
Effective arm length/Reach 250 mm
Maximum withdrawal force (kN) 100 kN
Puller Type or Accessories Hydraulic Pullers
Series TMMA
EAN code 7316572459508
