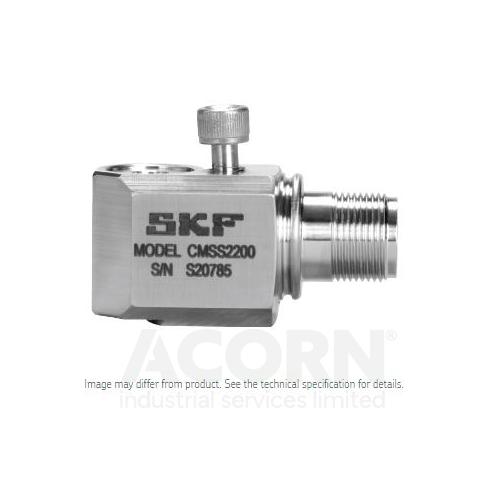

CMSS 2200, SKF, Industrial accelerometer with side exit, MIL-C-5015 two pin connector (XDCR, ACCL, LO PF) 1/4-2/8 and M6 captive socket head screws provided.
Calibration sensitivity and nominal sensitivity is provided for each accelerometer package.

Accelerometers, EAN code: 7316571280363

SKF
Brand SKF
Mfr Part No. CMSS 2200
Acorn Code CMSS2200-SKF
HS Code 8482 99 00 90
COO United States (US)

$655.51

− +

The CMSS2200 accelerometer is a good multi-purpose sensor. The sensor is commonly deployed in the following industries:
• Power Generation (Fossil, Nuclear, Hydro, Wind)
• Pulp and Paper
• Mineral Processing
• Food and Beverage
• Automation
• Metals
• Water and Waste Water
Features:
• For use with all SKF on-line systems, protection systems and the portable data collection instruments
• Rugged, economical and all around general purpose sensor
• 100 mV/g sensitivity to optimize use in multiple applications
• Exceptional bias voltage (BV) stability at elevated temperatures
• Designed for exceptional low noise level over a wide temperature range
• Meets CE, EMC requirements
• Captive mounting bolts (1/4-28 and M6 x 1.00) provided
• Corrosion resistant and hermetically sealed for installation in high humidity areas
• Reverse polarity wiring protection

Specification

Product Attributes
Manufacturer Product Code CMSS 2200
Basic Product Description Industrial accelerometer with side exit, MIL-C-5015 two pin connector (XDCR,ACCL,LO PF) 1/4-2/8 and M6 captive socket head screws provided.
Calibration sensitivity and nominal sensitivity is provided for each accelerometer package.
UOM Each
Weight (Kg) 0.13
Sensor Sensetivity 100 mV/g
Product type Accelerometers
EAN 7316571280363
