| Brand | SKF |
|---|---|
| Mfr Part No. | 54306 |
| Acorn Code | 54306-SKF |
| HS Code | 8482 10 90 30 |
| COO | Germany (DE) |

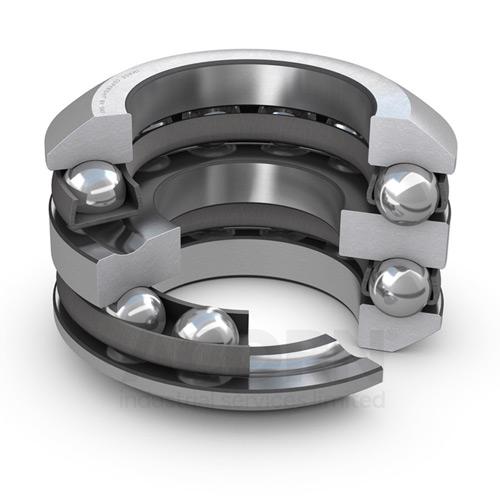

Double direction thrust ball bearings with a sphered housing washer can accommodate axial loads in both directions, but they must not be subjected to any radial load. Many of the components are interchangeable. These bearings can be used together with a sphered seat washer adjacent to the housing washer or adjacent to a machine component manufactured with a sphered surface. The shaft washers have a ground bore that enables an interference fit.
• Separable design facilitates mounting/dismounting and maintenance inspections
• Interchangeable components
• Ground bore of the shaft washers enable interference fits
• Accommodate initial misalignment
• Used with a sphered seat washer
| Manufacturer Product Code | 54306 |
|---|---|
| Basic Product Description | Double direction thrust ball bearing with sphered housing washers |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 25 |
| od (mm) | 60 |
| Thickness (mm) | 41.3 |
| Weight (Kg) | 0.49 |
| Accuracy | Normal |
| Cage material | Steel cage |
| Bearing Material | Bearing steel |
| Basic dynamic load rating | 35.8 kN |
| Basic static load rating | 65.5 kN |
| Limiting speed | 3800 r/min |
| Reference speed | 2800 r/min |
| EAN-Code | 07316577121462 |
