226400 E, SKF, Manually operated oil injector for pressures upto 300 MPa (43, 500 psi)

Oil Injector, G 3/4

Brand SKF
Mfr Part No. 226400 E
Acorn Code 226400E-SKF
HS Code 8482 99 00 90
COO SE

$947.35

+

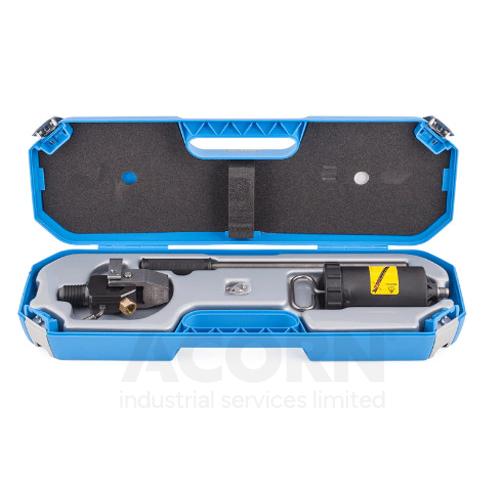

The 226400 E is suitable for many applications, for pressures up to 300 MPa/43,500 psi, using the SKF Oil Injection Method. The injector is supplied with an oil reservoir in a compact carrying case. The injector can be mounted directly onto the work piece or connected to a SKF Adapter Block 226402 to make a floor standing model, making it easy to connect pressure gauges and high-pressure pipes.
Typical mounting and dismounting applications
• Bearings
• Couplings
• Railway wheels
• Gear wheels
• Flywheels
• SKF OK Couplings

Specification

Product Attributes
Manufacturer Product Code 226400 E
Basic Product Description Manually operated oil injector for pressures upto 300 MPa (43,500 psi)
UOM Each
Features • Easy to operate
• Compact carrying case
• When the pressure is released, the unused oil is automatically returned to the reservoir, minimizing the risk of oil leakage to the environment
• Oil container capacity 200 cm³ (12.2 in³)
• Can be used with a wide range of accessories, such as: SKF Adapter block, SKF Pressure gauges, SKF High pressure pipes and SKF Connecting nipples
Width (mm) 180
Length (mm) 530
Height (mm) 85
Weight (Kg) 2.2
Thead G 3/4
Volume/stroke 0.23 cm³
MPA 300
PSI 43500
Container Capacity 200 cm³
Product type Oil Injector
