THAP 300E, SKF, Air-driven oil injector for pressures upto 300 MPa/43, 500 psi
Pump, G 3/4
| Brand | SKF |
|---|---|
| Mfr Part No. | THAP 300E |
| Acorn Code | THAP300E-SKF |
| HS Code | 8482 99 00 90 |
| COO | SE |

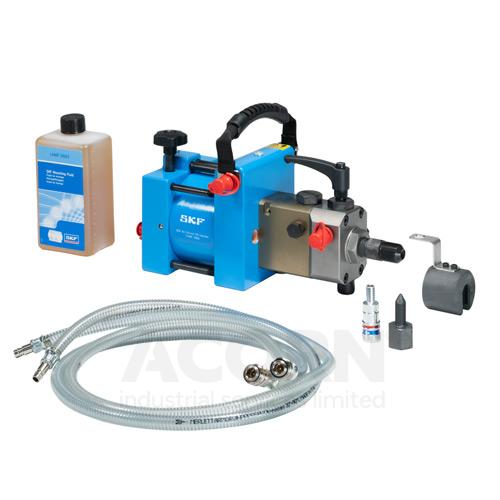

The THAP 300E air-driven oil injector can be used for mounting and dismounting SKF OK Couplings, large pressure joints such as bearings, flywheels, couplings and railway wheels. It is also suitable for simlar applications for pressures upto 300 MPa/43,500 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismouting fluids are recommended for use with the THAP 300E.
Specification
| Manufacturer Product Code | THAP 300E |
|---|---|
| Basic Product Description | Air-driven oil injector for pressures upto 300 MPa/43,500 psi |
| UOM | Each |
| Features | Time savings compared to hand operated oil injectors • Portable • Continuous supply of oil • Internal air pressure limiter helps ensure safe operation • Low air consumption • Wide operating temperature range • Sturdy storage boxes |
| Width (mm) | 171 |
| Length (mm) | 405 |
| Height (mm) | 202 |
| Weight (Kg) | 13 |
| Thead | G 3/4 |
| Operating air pressure | 7 bar |
| Volume/stroke | 0.83 cm³ |
| MPA | 300 |
| PSI | 43500 |
| Container Capacity | Separate Container |
| Product type | Pump |
