THAP 400E, SKF, Air-driven oil injector for pressures upto 400 MPa/58, 000 psi
Pump, G 3/4
| Brand | SKF |
|---|---|
| Mfr Part No. | THAP 400E |
| Acorn Code | THAP400E-SKF |
| HS Code | 8482 99 00 90 |
| COO | SE |

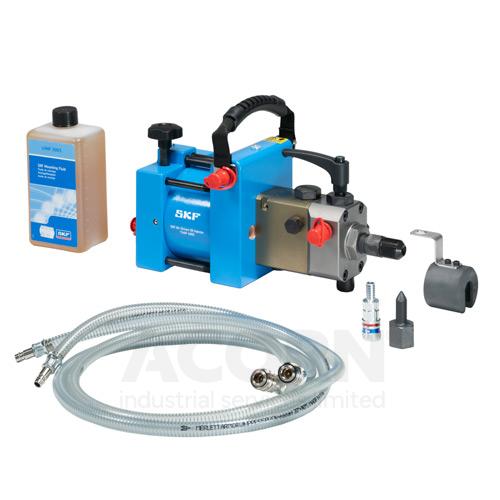

The THAP 400E air-driven oil injector can be used for mounting and dismounting SKF OK Couplings, large pressure joints such as bearings, flywheels, couplings and railway wheels. It is also suitable for simlar applications for pressures upto 400 MPa/58,000 psi. The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismouting fluids are recommended for use with the THAP 400E.
Specification
| Manufacturer Product Code | THAP 400E |
|---|---|
| Basic Product Description | Air-driven oil injector for pressures upto 400 MPa/58,000 psi |
| UOM | Each |
| Features | Time savings compared to hand operated oil injectors • Portable • Continuous supply of oil • Internal air pressure limiter helps ensure safe operation • Low air consumption • Wide operating temperature range • Sturdy storage boxes |
| Width (mm) | 171 |
| Length (mm) | 405 |
| Height (mm) | 202 |
| Weight (Kg) | 13 |
| Thead | G 3/4 |
| Operating air pressure | 7 bar |
| Volume/stroke | 0.64 cm³ |
| MPA | 400 |
| PSI | 58000 |
| Container Capacity | Separate Container |
| Product type | Pump |
Resources
-
THAP 400E Product data sheetProduct information and technical data
-
SKF Maintenance Equipment CatalogueSKF Maintenance and Lubrication Products
-
SKF Maintenance & Lubrication Catalogue
