Metric, Bearing unit, Stainless steel, Seal on both sides and flinger on one side, Contact, gutter, Set screws, EAN code: 07316579306928

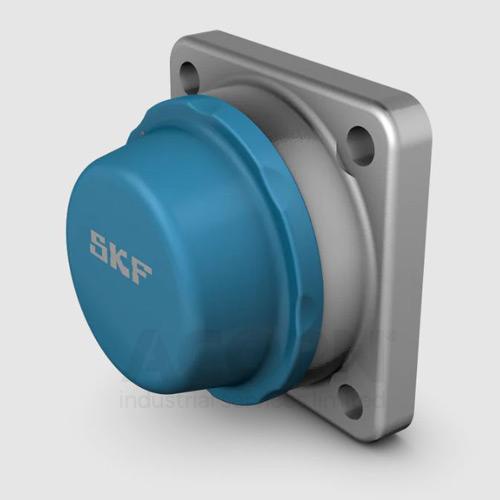

These square flanged ball bearing units are designed especially for the food and beverage industries. They consist of an insert bearing, with a narrow inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a stainless steel housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
| Manufacturer Product Code | F4BESS40M-CPSS-DFH |
|---|---|
| Basic Product Description | Square flanged ball bearing unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 40 |
| Weight (Kg) | 1.75 |
| Seals | Seal on both sides and flinger on one side |
| Features | Contact, gutter |
| Features | Set screws |
| Bore Type | Cylindrical |
| Bolt Hole Centres (mm) | 83 |
| Bearing Material | Stainless steel |
| Housing Material | Stainless steel |
| Dynamic load | 24.7 kN |
| Static load | 19 kN |
| Max Speed | 2800 r/min |
| EAN Code: | 07316579306928 |
