RNA22/8-2RSR, INA, Yoke type track roller, without axial guidance, lip seals
Track roller, Steel cage, Sealed on both sides, Crowned outer ring, EAN code: 4012802067668
$17.46
| Brand | INA |
|---|---|
| Mfr Part No. | RNA22/8-2RSR |
Track roller, Steel cage, Sealed on both sides, Crowned outer ring, EAN code: 07316570245769
| Brand | SKF |
|---|---|
| Mfr Part No. | RNA 22/8.2RS |
| Acorn Code | RNA22/8.2RS-SKF |
| HS Code | 8482 40 00 00 |
| COO | Germany (DE) |

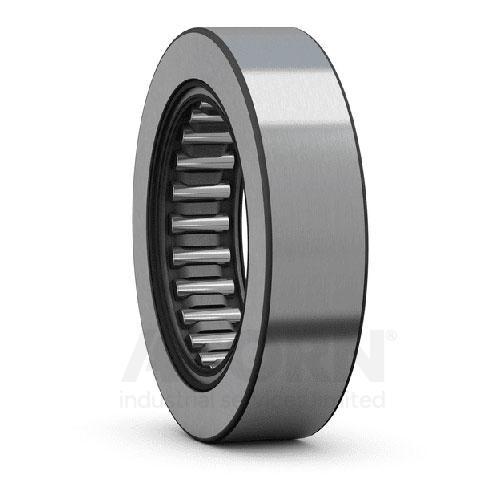

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing without an inner ring, intended for applications where hardened and ground raceways can be provided on the pin or shaft. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount.
• High radial load carrying capacity
• Able to withstand shock loads
• Long service life
• Ready to mount
• Integral sealing prolongs bearing service life
| Manufacturer Product Code | RNA 22/8.2RS |
|---|---|
| Basic Product Description | Support rollers (Yoke-type track rollers) |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 12 |
| od (mm) | 24 |
| Width (mm) | 11.8 |
| Number of Rows | 1 |
| Weight (Kg) | 0.025 |
| Sealing | Sealed on both sides |
| Sealing type | Contact seals |
| Outer ring profile | Crowned outer ring |
| Rolling elements | Needle rollers |
| Cage material | Steel cage |
| Bearing Material | Bearing Steel |
| Basic static load rating | 4.68 kN |
| Limiting speed | 6700 r/min |
| Reference speed | 6700 |
| EAN-Code | 07316570245769 |
Track roller, Steel cage, Sealed on both sides, Crowned outer ring, EAN code: 4012802067668
| Brand | INA |
|---|---|
| Mfr Part No. | RNA22/8-2RSR |
Track roller, Steel cage, Sealed on both sides, Crowned outer ring, EAN code: 9008745730375
| Brand | NKE |
|---|---|
| Mfr Part No. | RNA22/8-2RSR |
