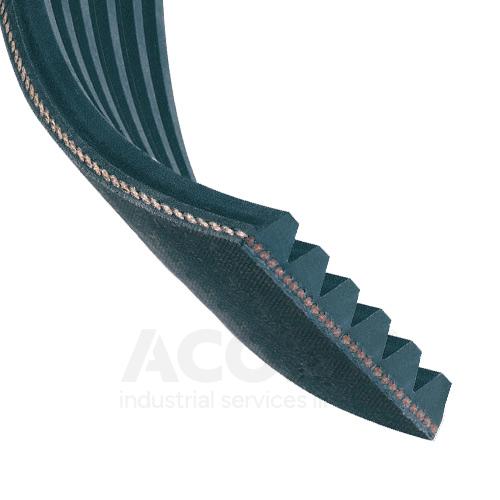

6PL2197/865L, Hutchinson, Poly-Vee Belt

6 Rib, Rubber, Ribbed belt

Brand Hutchinson
Mfr Part No. 6PL2197/865L
Acorn Code 6PL2197/865L-HUTCHINSON
HS Code 4010 19 00 00
COO

Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.

France (FR)

The Poly V-Belt, or Ribbed Belt as it is also known, resembles a flat belt - but with V-shaped ribs along the inside surface for increased friction force between the pulley and the belt. Poly V ribbed belts require less energy to flex around the pulleys and can therefore transfer power more effectively to the driven pulley.
Poly V belts are used in applications such as conveyors and handling systems, fitness sport & leasure equipment, industrial engines, power tools, military vehicles and agricultural and gardening equipment.

Specification

Product Attributes
Manufacturer Product Code 6PL2197/865L
Basic Product Description Poly-Vee Belt
Measurement Metric
UOM Each
Nominal Length Ln (mm) 2197
Rib Pitch (mm) 4.7
Depth (mm) 7
Nominal Length Ln (in) 86.1/2
Weight (Kg) 0.395
No. of Ribs 6 Rib
Section PL
Material Rubber
Technical Improved transmission ratio is possible (Poly V 1 : 60 vs V belt 1 : 20). Does away with the need for stepped pulleys.
