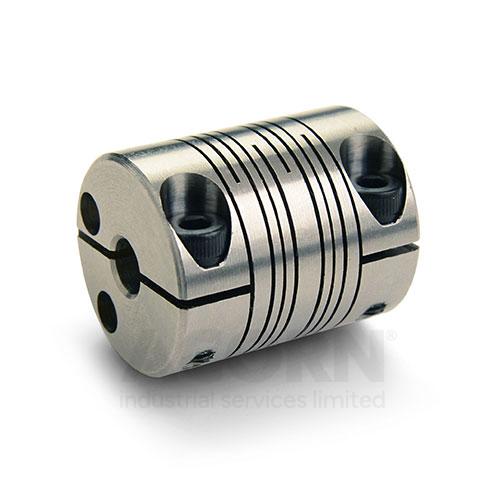

Imperial, Aluminium, Beam Coupling, Size: 24
| Brand | Ruland |
|---|---|
| Mfr Part No. | FCR24-8-8-A |
| Acorn Code | FCR24-8-8-A-RULAND |
| HS Code | 8483 50 80 90 |
| COO | United States (US) |
Aluminium
Torsionally stiff with dampening
Lightweight for low inertia
Temperature range: -40°F to 225°F
• Multiple beam cuts improve parallel misalignment capabilities
• Zero backlash
• Constant velocity
• RoHS3 and REACH Compliant
• Maximum speed: 6,000 RPM
• Bore tolerance: +.025mm/-.000mm
| Manufacturer Product Code | FCR24-8-8-A |
|---|---|
| Basic Product Description | Aluminium clamp style six beam coupling |
| Measurement | Imperial |
| UOM | Each |
| Component | Complete |
| Size | 24 |
| Bore Type | Plain Bore |
| Hub Design | Clamping |
| Large Bore (inch) | 3/4 |
| Small Bore (In) | 3/4 |
| od (In) | 1.1/2 |
| Length (inch) | 2.1/4 |
| Weights (Kgs) | 3/4 |
| Material | Aluminium |
| Screw Material | Alloy Steel |
| Screw Finish | Black Oxide |
| Number of Screws | 2 ea |
