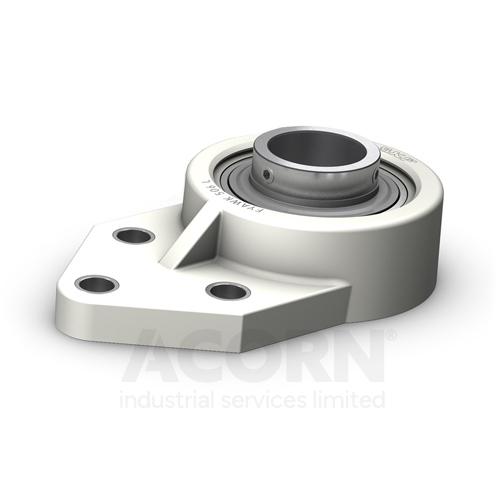

FYAWK 20 LTA, SKF, Food Line Y-Bearing 3-bolt flange bracket unit, Zinc-coated bearing

Metric, Bearing unit, Composite (White), Seal and flinger on both sides, Set screw locking

SKF Authorised distributor logo
Brand SKF
Mfr Part No. FYAWK 20 LTA
Acorn Code FYAWK20LTA-SKF
HS Code 8483 20 00 00
COO Italy (IT)

These three-bolt flanged ball bearing units are designed especially for the food and beverage industries. They are chemical resistant, lightweight and strong. The bearing unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

• Chemical resistant
• Pre-lubricated for life with a non-toxic food grade grease
• Lightweight
• Strong

Specification

Product Attributes
Manufacturer Product Code FYAWK 20 LTA
Basic Product Description Food Line Y-Bearing 3-bolt flange bracket unit, Zinc-coated bearing
Measurement Metric
UOM Each
id (mm) 20
Width (mm) 26.5
Weight (Kg) 0.14
Seals Seal and flinger on both sides
Features Contact, multiple
Features Set screw locking
Bore Type Cylindrical
Other Optional end cover / Sold separately
Bearing Material Bearing steel
Housing Material Composite (White)
Bearing/Insert reference YAR204-2RF/VE495
Housing reference FYAWK504L
Dynamic load 12.7
Static load 6.55
Max Speed 5000
