Metric, Bearing unit, Bearing steel, Seal and flinger on both sides, Grub screw locking, EAN code: 07316570818376
| Brand | SKF |
|---|---|
| Mfr Part No. | FYTBK 30TF |
| Acorn Code | FYTBK30TF-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

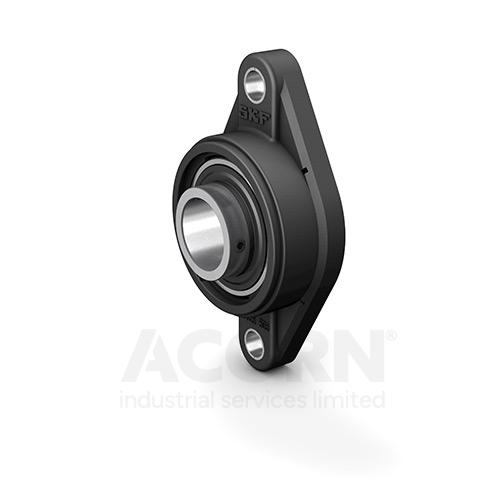

These oval flanged ball bearing units are compliant with ISO standards. The unit consists of an insert bearing, with an extended inner ring and set screw locking, and is suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a composite housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
• Chemical resistant
• Pre-lubricated for life
• Lightweight
• Strong
| Manufacturer Product Code | FYTBK 30TF |
|---|---|
| Basic Product Description | Y-Bearing Oval Flange (2 Bolt) |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 30 |
| od (mm) | 142.5 |
| Width (mm) | 33 |
| Length (mm) | 142.5 |
| Height (mm) | 83 |
| Weight (Kg) | 0.4285 |
| Sealing | Seal and flinger on both sides |
| Features | Grub screw locking |
| Bore Type | Cylindrical |
| In-1 Bolt Hole Centres (mm) | 116.5 |
| Bearing/Insert Material | Bearing steel |
| Housing Material | Composite (Black) |
| Bearing/Insert Reference | YAR206-2F |
| Housing Reference | FYTBK506 |
| Dynamic load (kN) | 19.5 |
| Static load (kN) | 11.2 |
| Max Speed | 6300 |
| EAN | 07316570818376 |
