Metric, Bearing unit, Bearing steel, Seal and flinger on both sides, Set screw locking, EAN code: 07316570997323
| Brand | SKF |
|---|---|
| Mfr Part No. | FYTJ 20TF |
| Acorn Code | FYTJ20TF-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

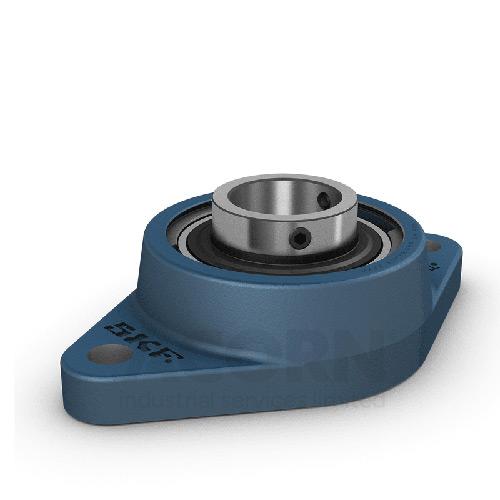

These oval flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
• Resist high levels of contamination
• Designed for high temperatures and speeds
• Accommodate relatively heavy loads
• Cost-effective
| Manufacturer Product Code | FYTJ 20TF |
|---|---|
| Basic Product Description | Y-Bearing Oval Flange (2 Bolt) |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 20 |
| Weight (Kg) | 0.4225 |
| Sealing | Seal and flinger on both sides |
| Features | Set screw locking |
| Bore Type | Cylindrical |
| In-1 Bolt Hole Centres (mm) | 90 |
| Bearing/Insert Material | Bearing steel |
| Housing Material | Cast iron |
| Bearing/Insert Reference | YAR204-2F |
| Housing Reference | FYJT504 |
| Dynamic load (kN) | 12.7 |
| Static load (kN) | 6.55 |
| Max Speed | 8500 |
| EAN | 07316570997323 |
