SKF - SY 20 FM - Pillow block bearing unit - Y-Bearing Pillow Block Unit

SY 20 FM, SKF, Y-Bearing Pillow Block Unit

Metric, Pillow block bearing unit, Cast iron, Steel, Seal on both sides, Eccentric locking collar, EAN code: 07316570919431

Brand	SKF
Mfr Part No.	SY 20 FM
Acorn Code	SY20FM-SKF
HS Code	8483 20 00 00
COO Country of Origin details on this platform are for reference only and may differ from the actual products supplied. This information does not guarantee preferential treatment or availability from a specific country.	Italy (IT)

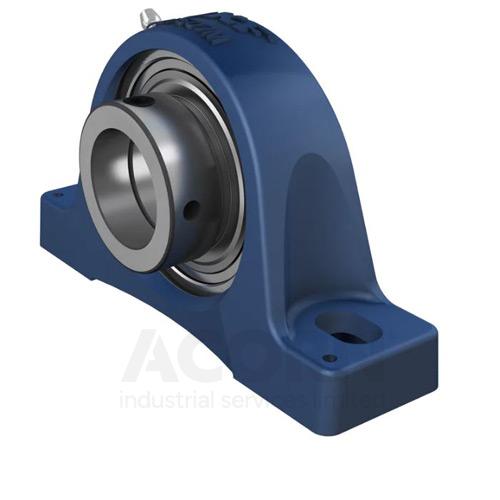

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring and is locked onto the shaft by an eccentric locking collar, making it easy to mount.

• Strong
• Ready to mount
• Lubricated and sealed bearing
• Designed for rotation in one direction
• Accommodate static initial misalignment

Specification

Product Attributes
Manufacturer Product Code	SY 20 FM
Basic Product Description	Y-Bearing Pillow Block Unit
Measurement	Metric
UOM	Each
Shaft Diameter (mm)	20
Length (mm)	127
Weight (Kg)	0.5737
Sealing, bearing	Seal on both sides
Features	Eccentric locking collar
Bore Type	Cylindrical
Bearing/Insert Material	Steel
Housing Material	Cast iron
Bearing/Insert Reference	YET204
Housing Reference	SY
Basic dynamic load rating	12.7
Basic static load rating	6.55
Limiting speed	8500
EAN Code	07316570919431
