Metric, Pillow block bearing unit, Steel, Seal and flinger on both sides, SKF ConCentra, EAN code: 07316574719006
| Brand | SKF |
|---|---|
| Mfr Part No. | SY 50 LF |
| Acorn Code | SY50LF-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

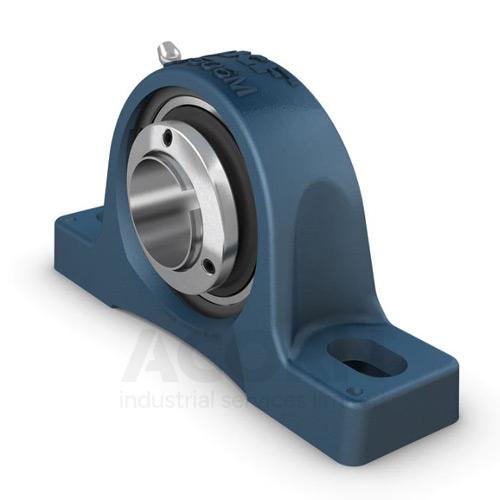

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. It has an inner ring extended on both sides and is locked onto the shaft by a SKF ConCentra locking, creating a true concentric tight fit, and setting the correct internal clearance within the bearing, and making it easy to mount.
• Strong
• Ready to mount
• Lubricated and sealed bearing
• Quick locking onto the shaft
• Cost-effective
| Manufacturer Product Code | SY 50 LF |
|---|---|
| Basic Product Description | Y-Bearing Pillow Block Unit |
| Measurement | Metric |
| UOM | Each |
| Shaft Diameter (mm) | 50 |
| Weight (Kg) | 2.68 |
| Sealing, bearing | Seal and flinger on both sides |
| Features | SKF ConCentra |
| Bore Type | Cylindrical |
| Bearing/Insert Material | Steel |
| Housing Material | Cast iron |
| Bearing/Insert Reference | YSP |
| Housing Reference | SY |
| Basic dynamic load rating | 35.1 |
| Basic static load rating | 23.2 |
| Limiting speed | 4000 |
| EAN Code | 07316574719006 |
