SNP50, RHP, Self Lube Short Base Pillow Block
Metric, Bearing unit, Bearing Steel, Standard seal, Spherical outside diameter, Set screw locking
$63.77
In stock
| Brand | RHP |
|---|---|
| Mfr Part No. | SNP50 |
Metric, Bearing unit, Bearing Steel, Seal and flinger on both sides, Contact, standard, Set screw locking, EAN code: 07316570574197
| Brand | SKF |
|---|---|
| Mfr Part No. | SYF 50 TF |
| Acorn Code | SYF50TF-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

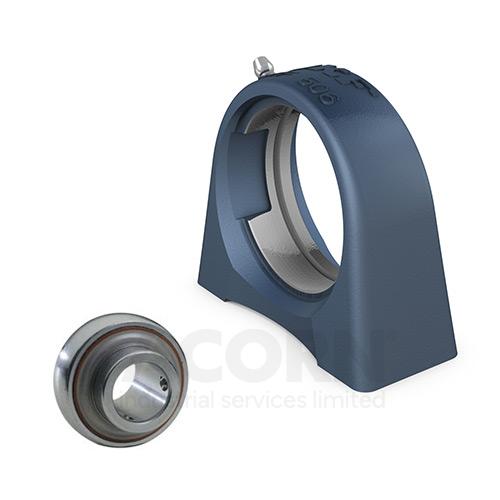

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
• Strong
• Ready to mount
• Designed for a constant and alternating rotation
• Lubricated and sealed bearing
• High degree of stiffness
• Narrow design
| Manufacturer Product Code | SYF 50 TF |
|---|---|
| Basic Product Description | Y-Bearing Pillow Block Unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 50 |
| Width (mm) | 114.5 |
| Length (mm) | 54 |
| Weight (Kg) | 2.2 |
| Seals | Seal and flinger on both sides |
| Sealing type | Contact, standard |
| Locking Style | Set screw locking |
| Bore Type | Cylindrical |
| Bolt Hole Centres (mm) | 101.6 |
| Bearing Material | Bearing Steel |
| Housing Material | Cast Iron |
| Bearing/Insert reference | YAR 210-2F |
| Housing reference | SYF 510 |
| Dynamic load | 35.1 |
| Static load | 23.2 |
| Max Speed | 4000 |
Metric, Bearing unit, Bearing Steel, Standard seal, Spherical outside diameter, Set screw locking
| Brand | RHP |
|---|---|
| Mfr Part No. | SNP50 |
Metric, Bearing unit, Bearing Steel, R Seals, Set screw locking
| Brand | INA |
|---|---|
| Mfr Part No. | RSHEY50-XL-N |
