Metric, Bearing unit, Stainless Steel, Seal and flinger on both sides, Contact, multiple, Set screw locking
| Brand | SKF |
|---|---|
| Mfr Part No. | SYFWK 35 LTHR |
| Acorn Code | SYFWK35LTHR-SKF |
| HS Code | 8482 10 90 30 |
| COO | Italy (IT) |

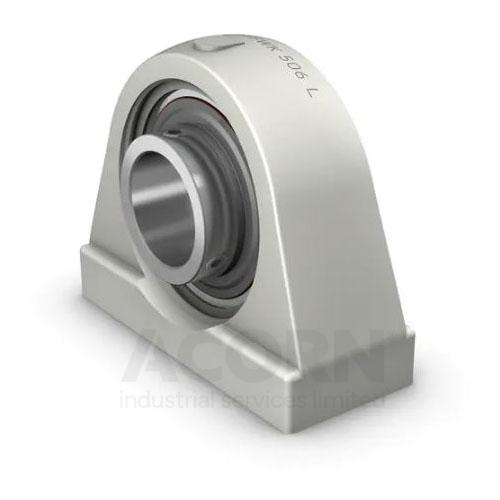

Short base pillow (plummer) block ball bearing units consist of an insert bearing mounted in a composite housing. This variant has threads for attachment bolts and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.
• Designed for a constant and alternating rotation
• Excellent corrosion resistance
• Lightweight
• Recyclable
| Manufacturer Product Code | SYFWK 35 LTHR |
|---|---|
| Basic Product Description | Foodline Short base pillow block ball bearing unit with extended inner ring |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 35 |
| Width (mm) | 95 |
| Length (mm) | 47.5 |
| Weight (Kg) | 0.69 |
| Seals | Seal and flinger on both sides |
| Sealing type | Contact, multiple |
| Locking Style | Set screw locking |
| Bolt Hole Centres (mm) | 82.6 |
| Bearing Material | Stainless Steel |
| Housing Material | Composite (White) |
| Bearing/Insert reference | YAR207-2RFGR/HV |
| Housing reference | SYFWK507L |
| Dynamic load | 21.6 |
| Static load | 15.3 |
| Max Speed | 3200 |
