SF40EC, RHP, Self Lube Square four bolt flanged bearing unit
Metric, Bearing unit, Bearing steel, Standard seals, Spherical outside diameter, Eccentric locking collar
$45.48
In stock
| Brand | RHP |
|---|---|
| Mfr Part No. | SF40EC |
Metric, Bearing unit, Bearing steel, Seal on both sides, Contact, standard, Eccentric collar, EAN code: 07316577035929
| Brand | SKF |
|---|---|
| Mfr Part No. | FY40FM |
| Acorn Code | FY40FM-SKF |
| HS Code | 8483 20 00 00 |
| COO | Italy (IT) |

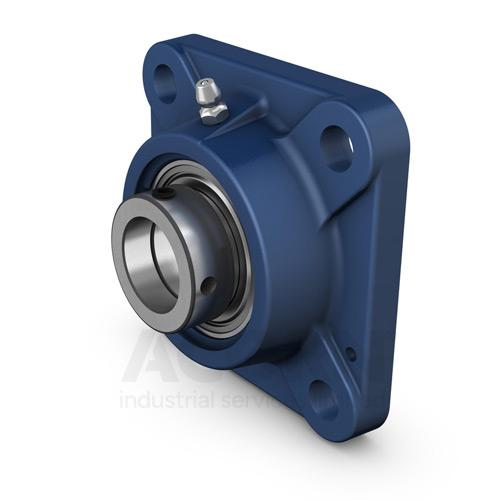

These square flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with a narrow inner ring and eccentric locking, and are intended primarily for use in applications where the direction of rotation is constant. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
• Resist high levels of contamination
• Designed for high temperatures and speeds
• Accommodate relatively heavy loads
• Cost-effective
| Manufacturer Product Code | FY40FM |
|---|---|
| Basic Product Description | Square 4-bolt flanged unit |
| Measurement | Metric |
| UOM | Each |
| id (mm) | 40 |
| Weight (Kg) | 1.82 |
| Seals | Seal on both sides |
| Features | Contact, standard |
| Features | Eccentric collar |
| Bore Type | Cylindrical |
| Bolt Hole Centres (mm) | 101.5 |
| Bearing Material | Bearing steel |
| Housing Material | Cast iron |
| Dynamic load | 30.7 kN |
| Static load | 19 kN |
| Max Speed | 4800 r/min |
| EAN Code: | 07316577035929 |
