SF60, RHP, Self Lube Square four bolt flanged bearing unit
Metric, Bearing unit, Bearing steel, Standard seals, Spherical outside diameter, Set screw locking
Brand | RHP |
---|---|
Mfr Part No. | SF60 |
Metric, Bearing unit, Bearing steel, Seal and flinger on both sides, Set screw locking, EAN code: 07316577029355
Brand | SKF |
---|---|
Mfr Part No. | FY60TF |
Acorn Code | FY60TF-SKF |
HS Code | 8483 20 00 00 |
COO | Italy (IT) |
These square flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.
• Resist high levels of contamination
• Designed for high temperatures and speeds
• Accommodate relatively heavy loads
• Cost-effective

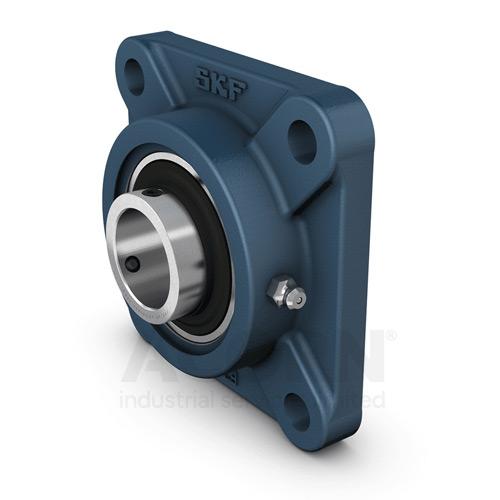

Manufacturer Product Code | FY60TF |
---|---|
Basic Product Description | Square 4-bolt flanged unit |
Measurement | Metric |
UOM | Each |
id (mm) | 60 |
od (mm) | 175 |
Width (mm) | 73.7 |
Weight (Kg) | 4 |
Seals | Seal and flinger on both sides |
Features | Set screw locking |
Bore Type | Cylindrical |
Bolt Hole Centres (mm) | 143 |
Bearing Material | Bearing steel |
Housing Material | Cast iron |
Bearing/Insert | YAR212-2F |
Housing | FY512M |
Dynamic load | 52.7 kN |
Static load | 36 kN |
Max Speed | 3400 r/min |
EAN Code: | 07316577029355 |
Metric, Bearing unit, Bearing steel, Standard seals, Spherical outside diameter, Set screw locking
Brand | RHP |
---|---|
Mfr Part No. | SF60 |
Metric, Bearing unit, R Seals, Grub screws in inner ring, EAN code: 4054372845116
Brand | INA |
---|---|
Mfr Part No. | RCJY60-XL-N |
